CL test of electrical system front doors rotary tumbler microswitch - AD80.20-P-6001-39GH
CL test of electrical system front doors rotary tumbler microswitch - AD80.20-P-6001-39GH

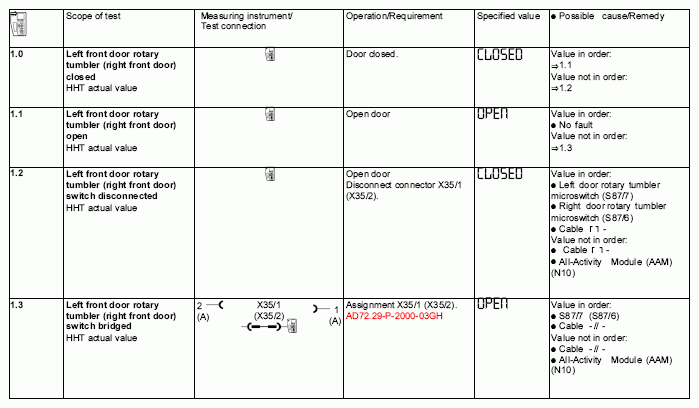

Fig 1: CL Test Of Electrical System Front Doors Rotary Tumbler Microswitch
