Remove/install antenna splitter - AR82.70-P-8953GH
MODEL 163.113 /136 /154 /157 /172 /174
| Remove/install | |||
|---|---|---|---|
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Open rear-end door | ||
| 2 | Remove liner on tailgate | AR72.20-P-3520GH | |

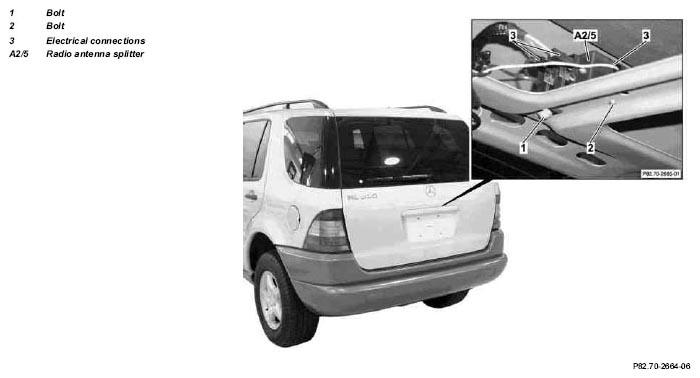

| 3 | Remove bolts (1, 2) | ||
| 4 | Disconnect electrical connectors (3) | ||
| 5 | Remove radio antenna splitter (A2/5) | ||
| 6 | Install in the reverse order |
