Removing and installing washer fluid reservoir of windshield washer system - AR82.35-P-6000GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 with 7.6 L reservoir

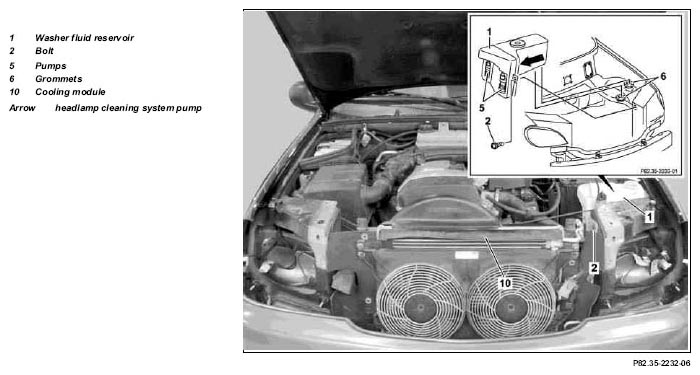

Fig 1: Identifying Washer Fluid Reservoir Of Windshield Washer System Components

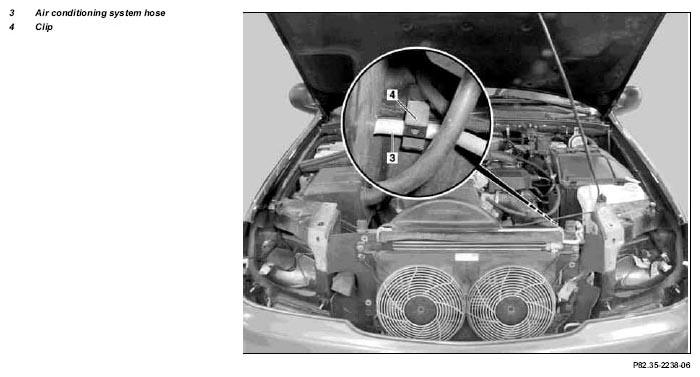

Fig 2: Identifying Air Conditioning System Hose And Clip

	Remove/Install
1	Remove upper frame cross member		AR62.30-P-2300GH
2	Drain the washer fluid reservoir	Manual pump	Fig 3
3	Disconnect connectors and hoses from pumps (5)	Loosen wiring harness from the side of the washer fluid reservoir. If fitted, disconnect plug from washer fluid level indicator switch.
4	Unscrew bolt (2)
5	Loosen air conditioning hose (3) from clip (4)
6.1	Remove covers and locking clips from fuse and relay module	Only Model 163.128.
7	Detach cooling module (10) from lower grommets
8	Remove washer fluid reservoir (1)	Loosen washer fluid reservoir (1)from lower grommets (6). Lift up cooling module with the help of an assistant. Press washer fluid reservoir inwards and pull straight upwards. Installation:  Ensure that the washer fluid reservoir (1) is correctly seated in the grommets (6) and side clip.
9	Install in the reverse order

Fig 3: Identifying Hand Pump (210 589 00 71 00)
