Removing and installing exterior lamp switch - AR54.25-P-3250GH

MODEL 163

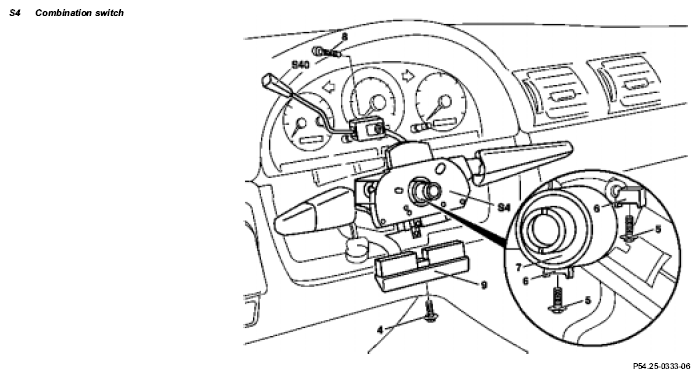

Fig 1: Identifying Combination Switch
G04607827
Illustration/item etc Notes on the work
S4 Combination switch IMPORTANT The rotary light switch is integrated in the combination switch and is not removed separately. AR54.25-P-2800GH
