Removing and installing cargo area connector box - AR54.10-P-0010GH

MODEL 163

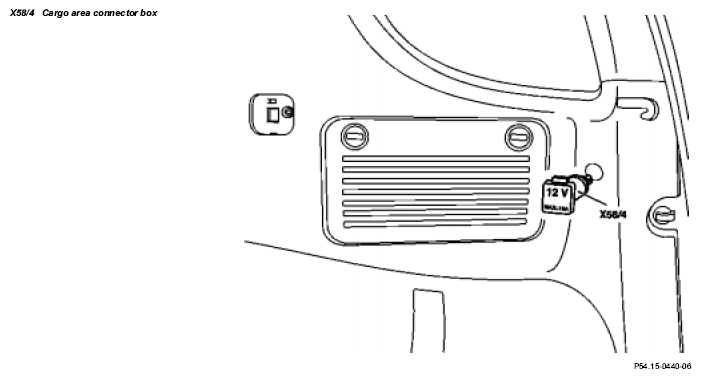

Fig 1: Identifying Cargo Area Connector Box - Model 163

	Removing, installing
1	Open rear lid	The cargo area socket connector box (X58/4) is located in the right-hand side trim
2	Pull cargo area connector box forwards out of trim	Carefully rise out of trim using a suitable tool, e.g. plastic wedge
3	Disconnect electrical connections
4	Install in reverse order
5	Carry out function check
