Retrofit D-network cell phone - AZ82.70-P-0001A
MODEL 163 up to 30.11.99
Nokia 3110 portable cellular telephone

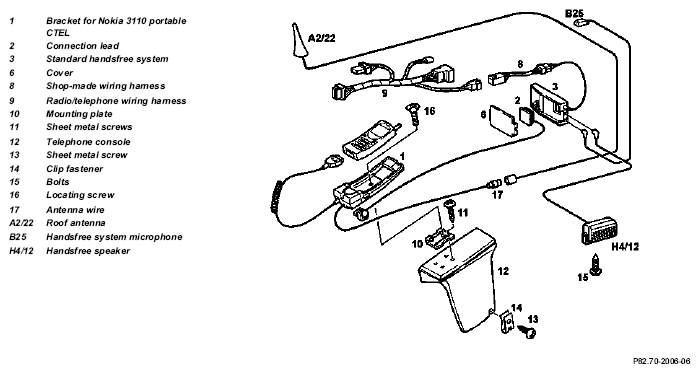

System illustration for installation
| Removal | |||
|---|---|---|---|
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio | ||
| 3 | Remove stowage compartment below radio | ||
| 4 | Remove stowage compartment in center armrest | ||
| 5 | Remove wooden cover from shift lever | ||
| 6 | Remove cover below right instrument panel | ||
| 7 | Remove A-pillar paneling at top right | ||
| 8 | Tie out D-net antenna lead | ||
| Install | |||
| 9 | Install holder on telephone console | AZ82.70-P-0001-01A | |
| 10 | Installing hands free system microphone | AZ82.70-P-0001-02A | |
| 11 | Install loudspeaker | AZ82.70-P-0001-03A | |
| 12 | Modify wiring harness and install | AZ82.70-P-0001-04A | |
| 13 | Install D-net antenna on roof | Install antenna without modification. |
|
| 14 | Check portable cellular telephone for proper function | ||
| 15 | Fit parts to vehicle 7-1 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 4155 | Portable cellular telephone, Nokia 3110 | 1 |
| B6 787 4160 | Motor vehicle installation kit, Nokia CARK-74 | 1 |
| B6 788 0128 | Antenna radiator, Kathrein | 1 |
| B6 787 4162 | Wiring harness assy. | 1 |
| B6 787 6794 | Telephone console, sand, left-hand steering | 1 |
| B6 787 6804 | Telephone console, sand, right-hand steering | 1 |
| B6 787 6798 | Telephone console, gray, left-hand steering | 1 |
| B6 787 6808 | Telephone console, gray, right-hand steering | 1 |
| Group 82 (see EPC) | Packard connector housing | 1 |
| Group 82 (see EPC) | Packard terminals | 5 |
| N914 129 005 000 | Screw | 2 |
| Commercially available | Foam rubber 250 x 260 x 20 | 1 |
| A000 989 92 71 | Special glue | 1 |
