Removing and installing power window motor in rear door - AR72.29-P-1880GH

MODEL 163

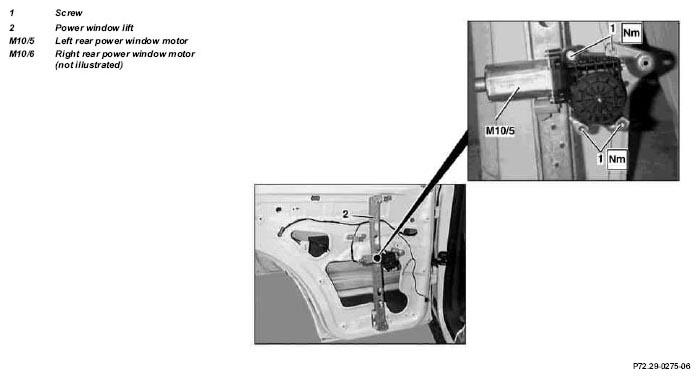

Fig 1: Identifying Power Window Motor Components In Rear Door

	Removal, installation
1	Remove power window lift mechanism in rear door		AR72.12-P-1810GH
2	Unscrew screw (1)	Protect motor from falling down
			Figure
			*BA72.29-P-1002-01A
3	Remove power window motor (M10/5 or M10/6) on window lift mechanism (2)	Installation:  Grease gear on motor lightly
4	Install in opposite order

Electrical equipment inside doors

Number	Designation		Model 163
BA72.29-P-1002-01A	Screw for power window motor in rear door	Nm	5

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
