Radio switches on and off and lamps in instrument cluster flicker while driving; and engine does not start - AF54.10-P-6004A

MODEL 163.113 /154 /172 /174 1A as of 145273, 163.113 /136 /154 /172 /174 1X as of 707755 up to 717497

Damage code Cause Remedy
54 019 74 Nut on line connector for circuit 30 (X4/37) does not apply sufficient pressure at contact point, because nut makes contact with line terminal in shoulder area. This leads to occasional voltage drop. 1 Check contact at X4/37 line connector on firewall
IMPORTANT Replace terminal block nut if it makes contact with the line terminal in the shoulder area (arrow).
↓

    2 Open engine hood and position upright AR88.40-P-1000GI
    3 Cover right fender with protective fender cover.
    4 Turn ignition key to position "0"
    5 Disconnect ground lead from battery. AR54.10-P-0003A
    6 Remove protective cover from positive pole on battery and install on negative pole
IMPORTANT Plug-in holes on the protective cover are located below the sticker.

    Model 163.113/174 only
7.1 Disconnect positive lead for suction fan control module from positive pole of battery

    Model 163.113/174 only
7.2 Remove fuse holder of suction fan at front at shield and remove lines from shield

    8 Unscrew mounting screw from shield
    TORQUE SPECIFICATION *BA54.10-P-1018-01C
    9 Remove clamping wedge from retaining bracket
    10 Unhook retaining bracket
IMPORTANT Press downward and remove

    11 Move battery and shield in direction of engine until terminal block X4/37 is accessible
    12 Remove nut (1) from X4/37 line connector
    13 Install new nut at X4/37 line connector.
    TORQUE SPECIFICATION *BA54.10-P-1019-01C
    IMPORTANT Ensure that cable is correctly routed. Battery line (3) is located behind positive pole (2) of fuse and relay module.
    14 Wax lines and terminal block X4/37
    15 Install battery with shield and all detachable body components in opposite order
    16 Remove protective fender cover.
    17 Mark retaining bracket of battery with blue color.
IMPORTANT To indicate that new nut is installed.

    18 Read out stored DTC with STAR DIAGNOSIS and erase.

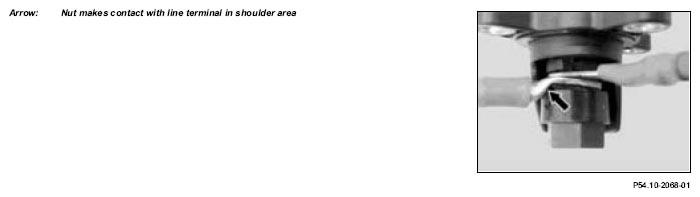

Fig 1: Locating Shoulder Area Of Nut And Terminal
G04607727

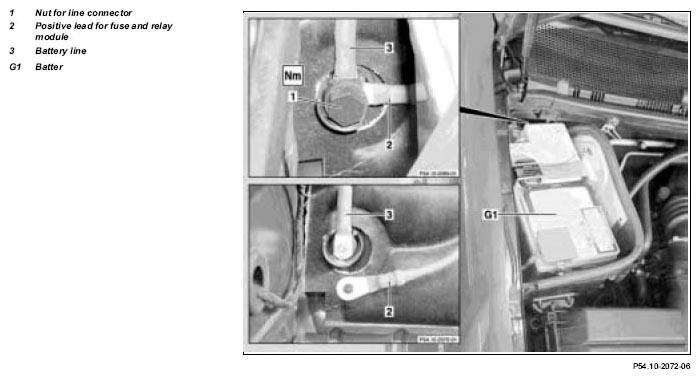

Fig 2: Identifying Battery And Positive Lead For Fuse And Relay Module
G04607728
TORQUE SPECIFICATION Battery

Number Designation Model 163
BA54.10-P-1018-01C Bolt, shield to body Nm 20
BA54.10-P-1019-01C Nut for line connector on fire wall Nm 15
Parts ordering notes

Part no. Designation Quantity
163 546 00 72 Nut for line connector 1
000 986 33 70 10 Wax preservative 1
