Removing and installing instrument cluster housing - AR54.30-P-6031GH

MODEL 163

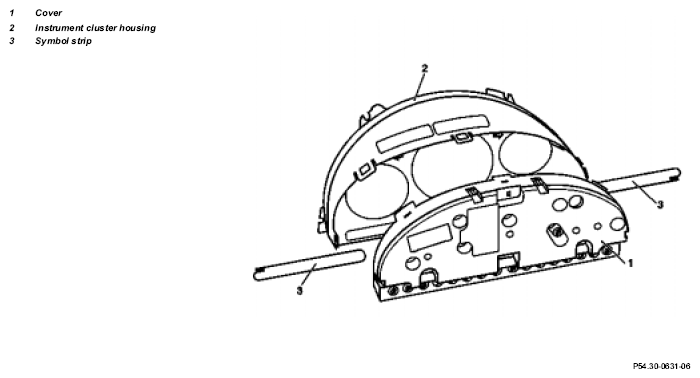

Fig 1: Identifying Instrument Cluster Housing Components

	Removing, installing
1	Remove instrument cluster		AR54.30-P-6015GH
2	Unclip retaining lugs (arrows)	Installation:  The retaining lugs must lock fully in position.
3	Remove cover (1) from instrument cluster housing (2)	The symbol strips (3) may fall out sideways. Installation:  Pay attention to vehicle equipment when replacing symbol strips. Ensure the adjusting knobs for the odometer and electronic clock are seated correctly.
4	Install in reverse order
