Removing and installing Parktronic system (PTS) warning display in instrument panel - AR54.65-P-0003GH

MODEL 163.113 /128 /154 /157 /174 /175 with CODE (220a) Parktronic System (PTS)

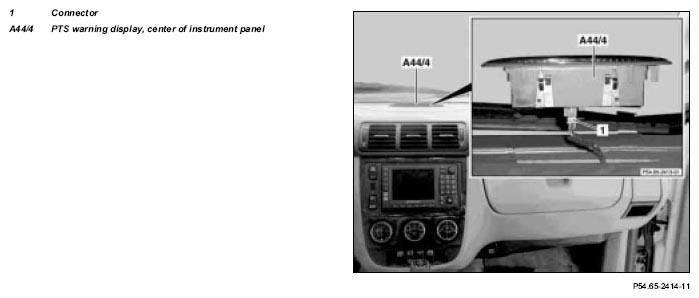

Fig 1: Identifying Parktronic System (PTS) Warning Display In Instrument Panel

	Remove/install
1	Remove PTS warning display (center of dashboard)A44/4) above the instrument panel.	Ensure that the instrument panel is not damaged.
		Long wedge	Figure
2	Disconnect connector (1).
3	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)
