Remove/install Parktronic system (PTS) warning indicator in rear dome lamp - AR54.65-P-0004GH

MODEL 163.113 /128 /154 /157 /174 /175 with CODE (220a) Parktronic System (PTS)

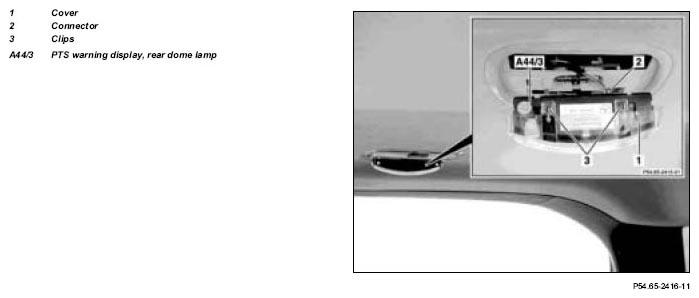

Fig 1: Identifying Parktronic System (PTS) Warning Indicator In Rear Dome Lamp

	Remove/install
1	Pull cover (1) off the PTS warning display, rear dome lamp (A44/3)	Do not damage the cover.
		Long wedge	Figure
2	Disconnect plug (2) from the PTS warning display, rear dome lamp (A44/3)
3	Bend open clips (3) and remove PTS warning display, rear dome lamp (A44/3)	Do not break off clips.
4	Remove PTS warning display, rear dome lamp (A44/3) from cover
5	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)
