Parktronic system (PTS), block diagram - GF54.65-P-0001-01E
Parktronic system (PTS), block diagram - GF54.65-P-0001-01E
Model 163 with code 220a Parktronic system (PTS)

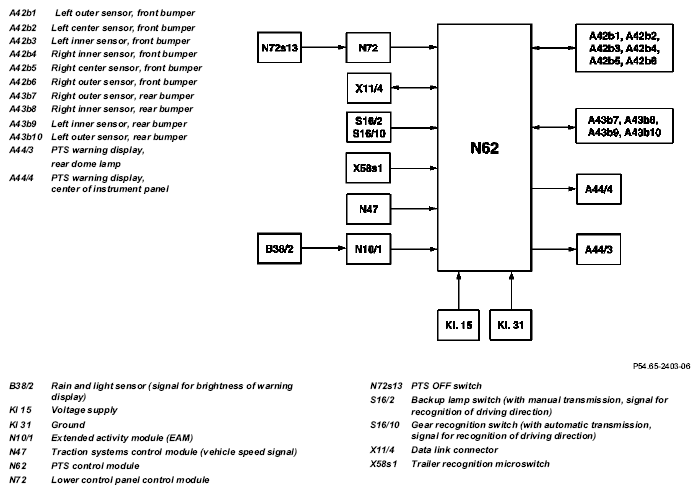

Fig 1: Identifying Parktronic System (PTS) Block Diagram
