Risk of poisoning Risk of injury - AR42.10-P-0010-02D

Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.

Rear axle fixed caliper

Number	Designation		Models 202.01/020/ 022/023/024/ 025/026/029/ 078/08/12/13/ 18/19, 202.028 without ASR	Models 202.028 with ASR, 202.033/093
BA42.10-P-1002-01A	Bleed screw on rear axle fixed caliper	Nm	7	7

Front axle floating caliper

Number	Designation		Models 202.018/020/ 022/023/078/ 080/081/083/ 087/120/121/ 122/125/133/ 134/180/182/ 193/194, 202.028 up to 08/95	Models 202.024/025/02 6/029/082/085/ 086/088/089/ 128/188, 202.028 as of 09/95
BA42.10-P-1002-03A	Bleed screw on front axle floating caliper	Nm	7	7

Front axle floating caliper

Number	Designation		Models 202.033/093, 208.374, 210.072 with code 957 (E50 AMG), 210.074/274
BA42.10-P-1002-03A	Bleed screw on front axle floating caliper	Nm	7

Fig 1: Identifying Socket Wrench (140 589 03 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Commercially available tools

Number	Designation
WH58.30-Z-1036-13A	Handheld tester (HHT)	651 100 01 99
WH58.30-Z-1037-13A	Test cable (multiplexer)	651 100 40 99

Open bleed screw on brake caliper (1) and allow approx. 80 cm³ of brake fluid to drain out free of bubbles, bleeding pressure 2 bar.
Repeat bleeding operation at brake calipers 2, 3, 4, allowing approx. 80 cm³ of brake fluid to flow out free of bubbles at each brake caliper.
Close bleed screw on brake caliper (1).

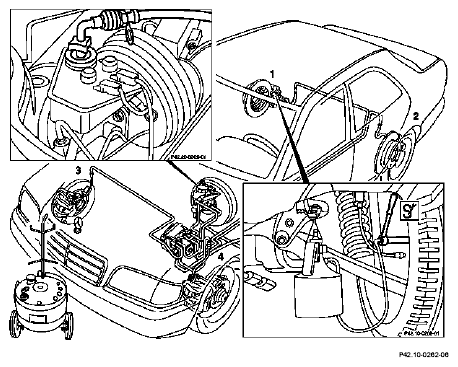

Fig 2: Identifying Bleeding Operation On Brake Caliper
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Bleed supply and return lines of ASR unit using hand-held tester (HHT)

This work must only be performed when the reservoir has been emptied or if work was performed on the master brake cylinder, charging pump, hydraulic unit and connecting lines.
Connect hand-held tester (087) with test cable (multiplexer) (094) to datalink connector (X11/4).
Launch bleeding routine (pay attention to instructions on display).

After bleeding, the brake fluid must flow without foaming and free of bubbles through the return line (10b) into the reservoir.

If there are bubbles or foam, wait 2 minutes and then repeat the bleeding operation. If necessary, check and tighten hydraulic connections.

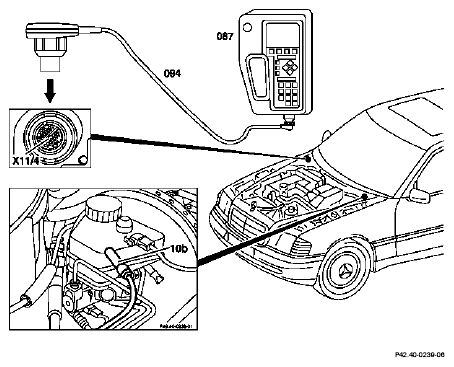

Fig 3: Checking Bleed Supply And Return Lines Of ASR Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Read out fault memory and erase
Switch off ignition.

The system is only operational after this procedure.
