Removing and installing vacuum pump - AR43.05-P-1320A

MODEL 140 with ENGINE 606

MODEL 202 with ENGINES 604, 605

MODEL 210 with ENGINE 602.982, 604, 605, 606

MODEL 460, 461, 463 with ENGINE 602

MODEL 463 with ENGINES 603, 606

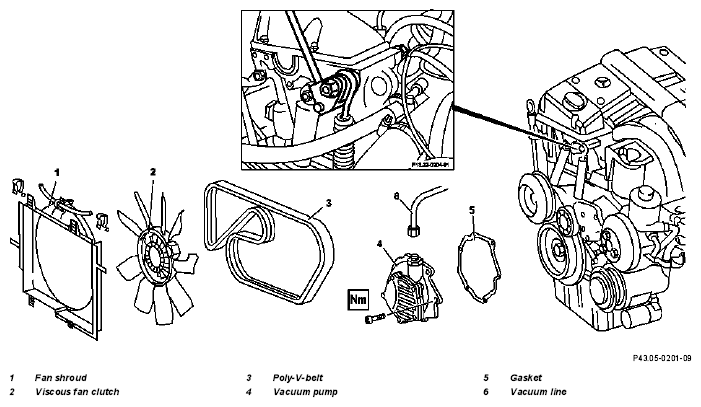

Fig 1: Identifying Vacuum Pump Components

	Remove/Install
1.1	Remove fan shroud (1)	Model 461 with engine 602.983	AR20.40-P-6800GV
2.1	Remove viscous fan clutch (2)	Engine 604	AR20.40-P-5660HA
		Engine 605, 606	AR20.40-P-5660HB
		Engines 602, 603 in models 461, 463	ra20006030312x
		Engine 602 in model 460	ra2051m600501z
3	Slacken poly V-belt (3) and swivel tensioning pulley to the side		AR13.22-P-1202HA
4	Detach vacuum line (6)
5	Unbolt vacuum pump (4)	Installation: Replace gasket in order prevent leaks. With the piston pump: Turn in direction of rotation of engine until the drive cams are on the injection timing device so that the drive roller of the vacuum pump engages between the cams. With a vane-cell pump (Barluk): Observe the position of the driver.
		Model 140, 202, 210	*BA43.05-P-1001-01A
		Model 202, 210	*BA43.05-P-1001-01D
		Models 460, 461, 463	*BA43.05-P-1001-01B
6	Install in the reverse order

Vacuum pump

Number	Designation		Model 140
BA43.05-P-1001-01A	Bolt, vacuum pump to cylinder head	Nm	10

Vacuum pump

Number	Designation		Models 460, 461 except models 461.302/331/332/342/345	Model 463 up to 30.11.00
BA43.05-P-1001-01B	Bolt, vacuum pump to timing case cover	Nm	10	10

Electric vacuum pump of brake booster

Number	Designation		Model 202	Model 210
BA43.05-P-1001-01D	Bolt, vacuum pump to cylinder head	Nm	14	14
