Outside air temperature sensor arrangement - GF83.57-P-2103-02S

(Shown on model 220)

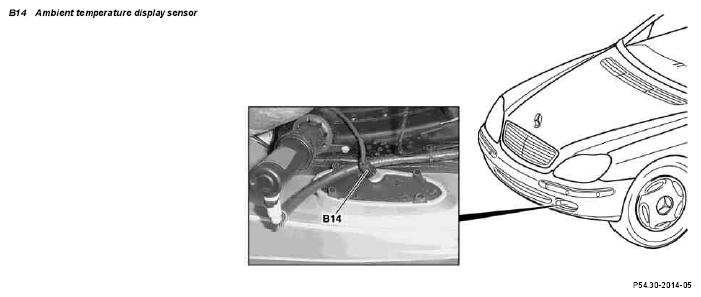

Fig 1: Identifying Outside Air Temperature Sensor

G04636069

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
