Rear Fuse Box F4 (Fuse Blocks A-C)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2001 Mercedes-Benz E55, 2001 Mercedes-Benz E320, 2000 Mercedes-Benz E55, 2000 Mercedes-Benz E320, and 1999 Mercedes-Benz E55. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Rear fuse box F4 is located under right side of rear seat bench. See Fig 1 -Fig 7

Fig 1: Locating Rear Fuse Box F4

G00033049

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying Fuse Blocks A-C On Rear Fuse Box F4

G00147950

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

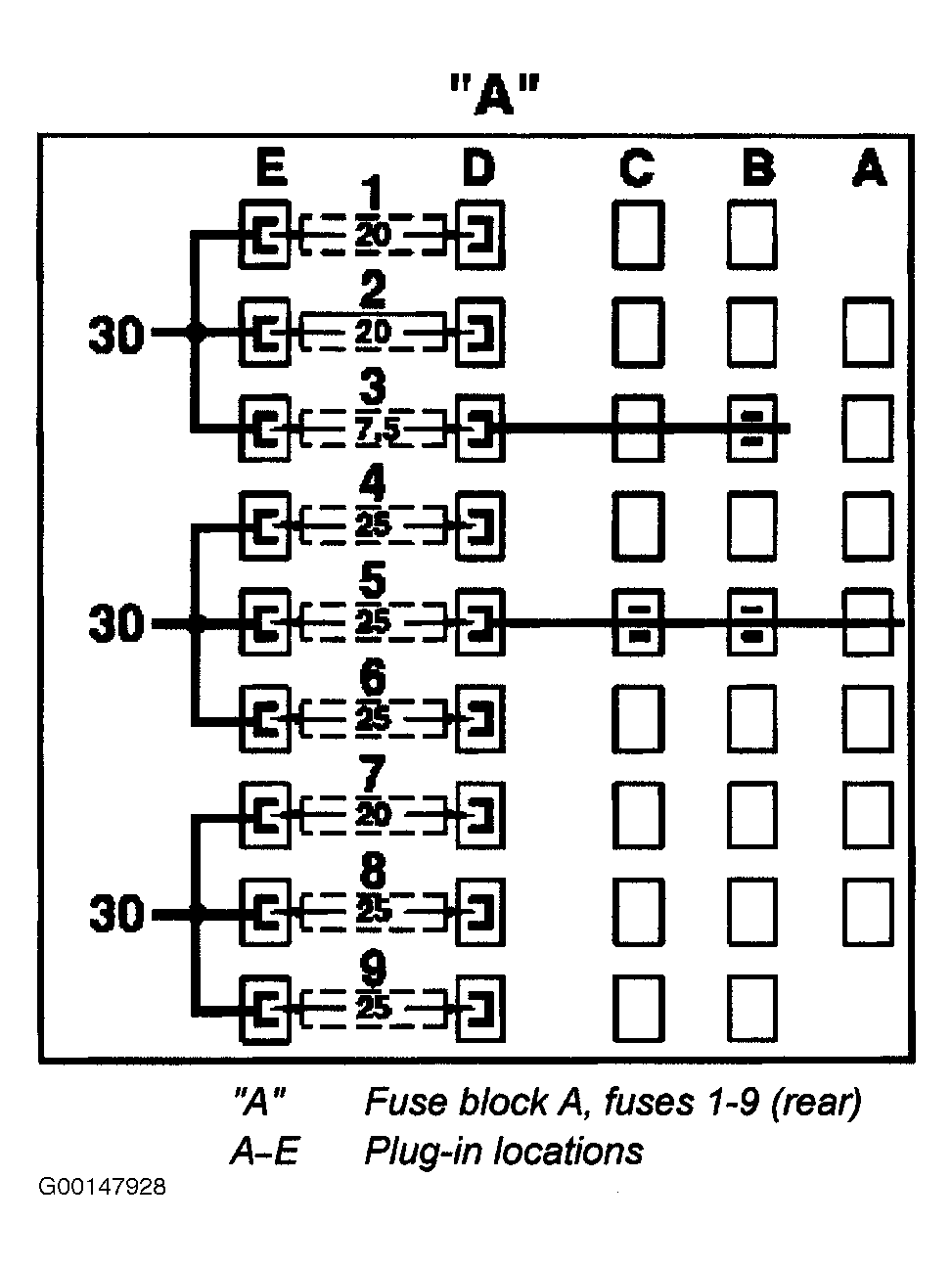

Fig 3: Locating Fuses On Fuse Block A Of Rear Fuse Box F4

G00147928

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

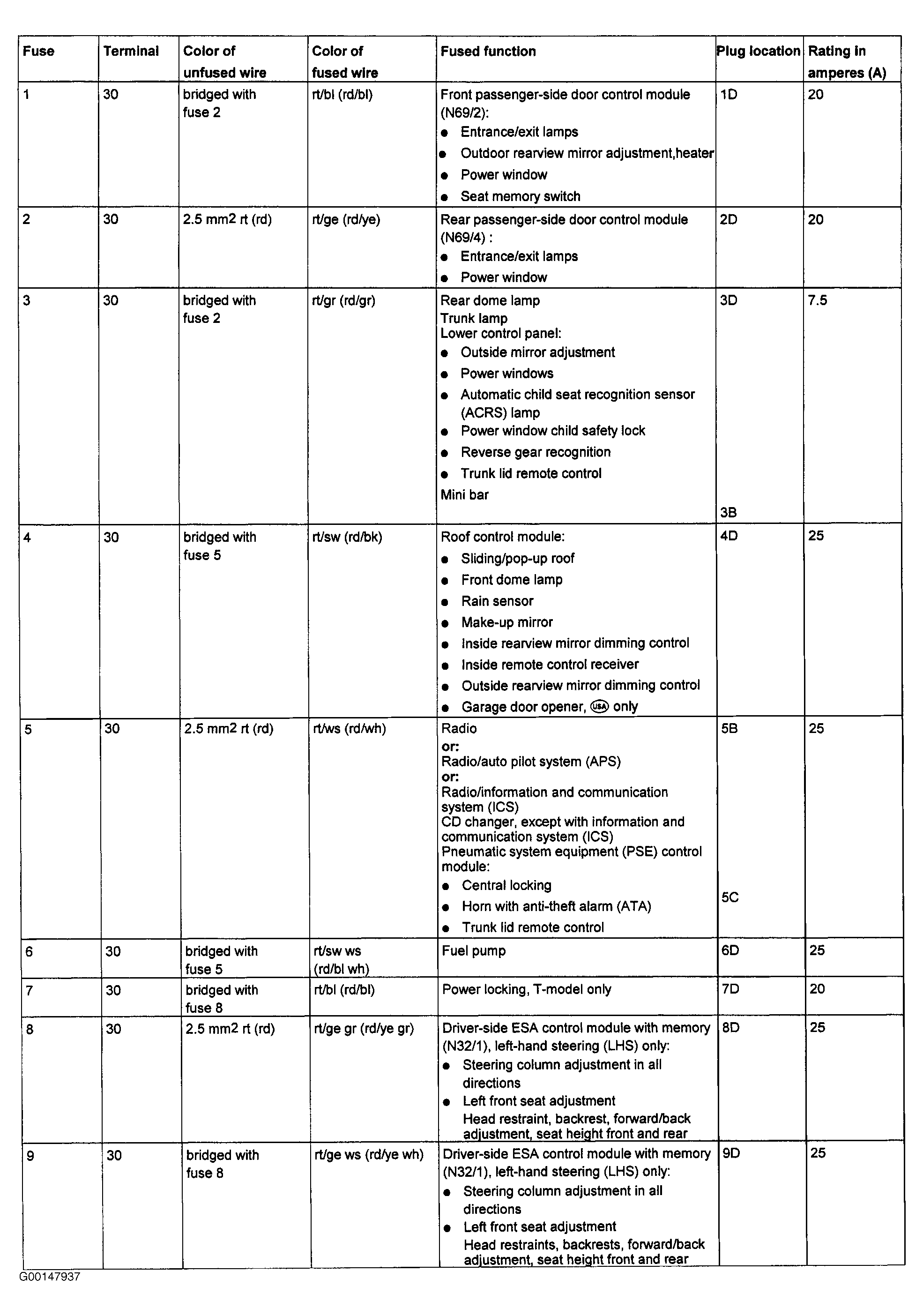

Fig 4: Identifying Fuses 1-9 On Fuse Block A Of Rear Fuse Box F4

G00147937

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

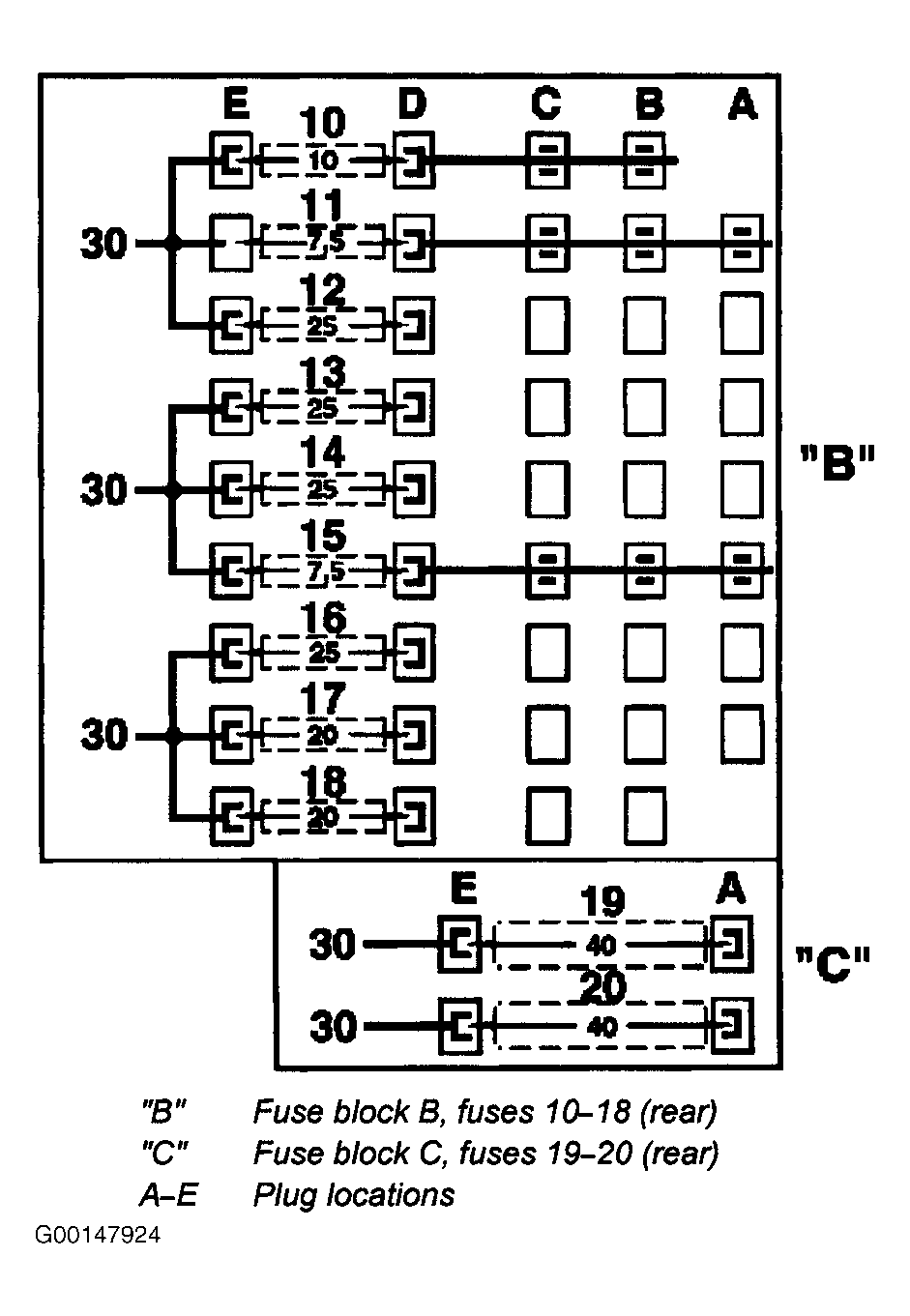

Fig 5: Locating Fuses On Fuse Blocks B & C Of Rear Fuse Box F4

G00147924

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

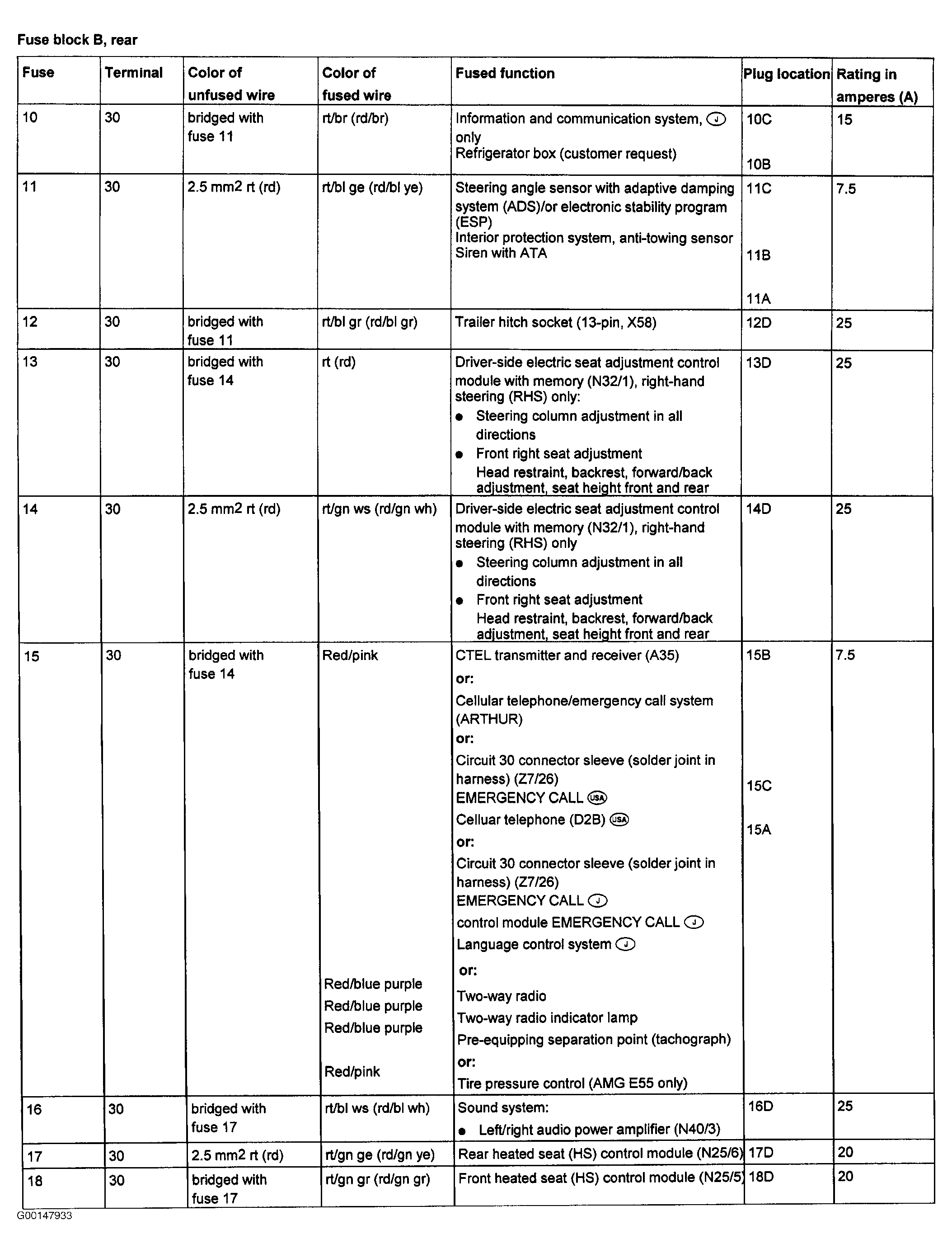

Fig 6: Identifying Fuses 10-18 On Fuse Block B Of Rear Fuse Box F4

G00147933

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

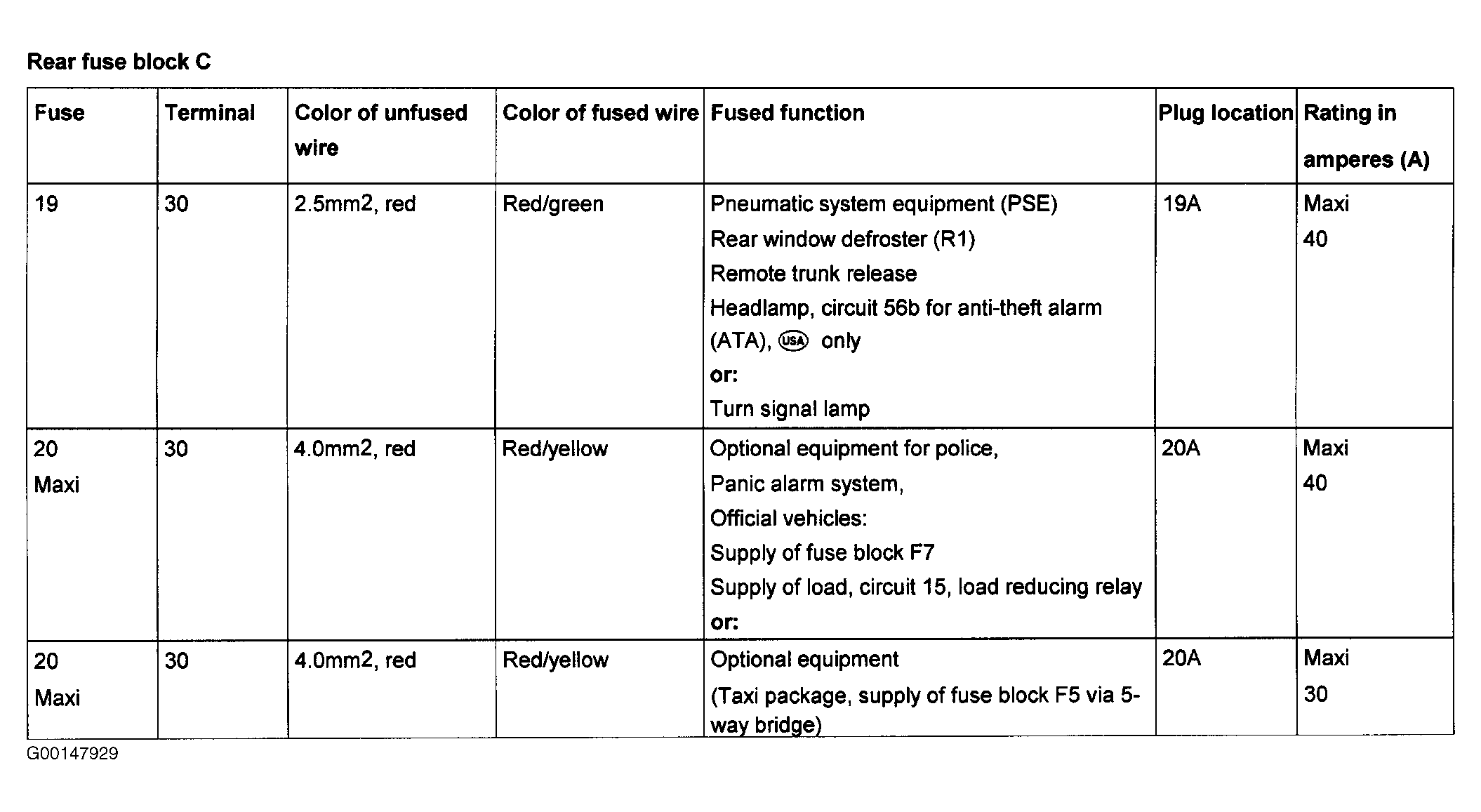

Fig 7: Identifying Fuses 19 & 20 On Fuse Block C Of Rear Fuse Box F4

G00147929

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
