Electronic inline injection system (IFI) function diagram - GF07.12-P-0001-01HE

Engine 606.962

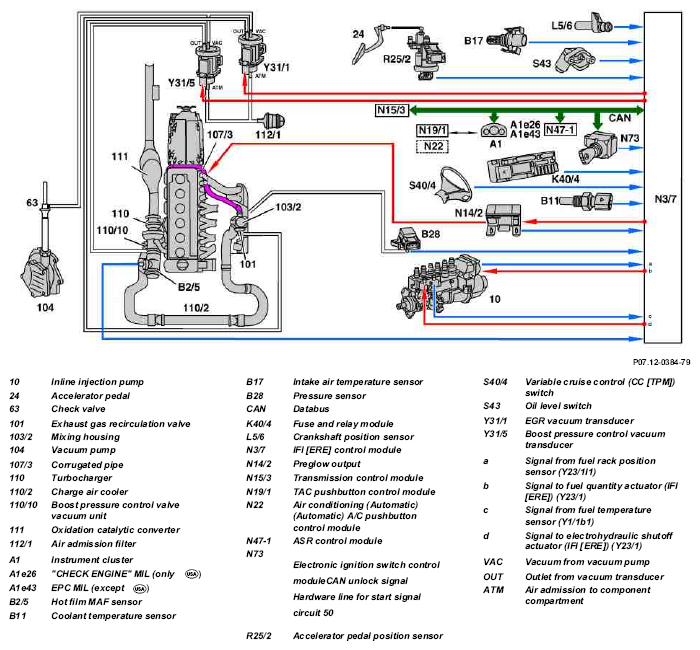

Fig 1: Electronic Inline Fuel Injection System Function Diagram - Engine 606.962
G04623902Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
