Electronic inline injection system (IFI) function diagram - GF07.12-P-0001-01HC

Engine 606.912 as of 06/96

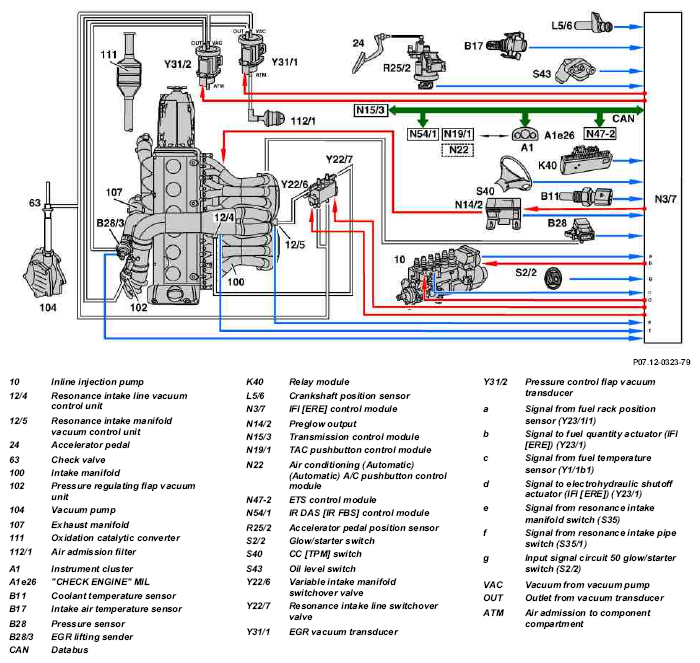

Fig 1: Electronic Inline Fuel Injection System Function Diagram - Engine 606.912

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
