Coolant temperature sensor design - GF07.04-P-5026-01C

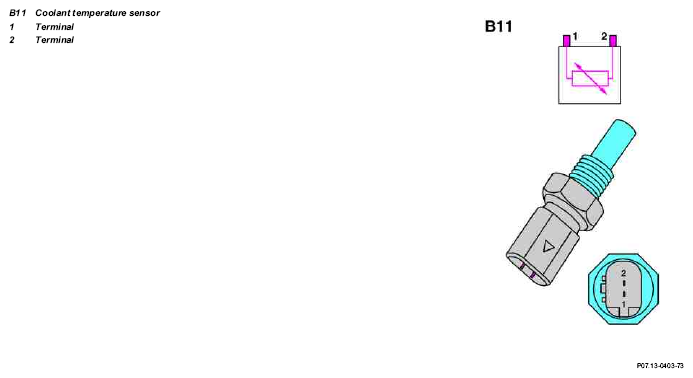

Fig 1: Identifying Coolant Temperature Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Metal casing with NTC resistor. 2-pin plug connector.

Contact assignment at connector:

Terminals 1 and 2 to engine control module
