Connecting diagram of intake manifold - AR09.20-P-1310-01DE

Connecting diagram of vacuum supply HFM-SFI model 210

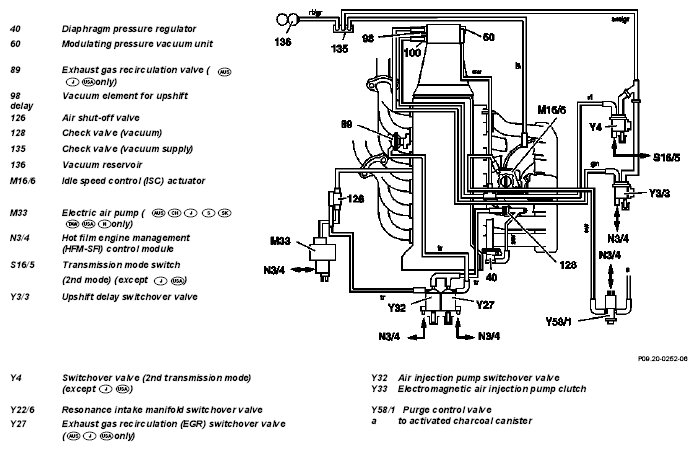

Fig 1: Connecting Diagram Of Intake Manifold

G04624243
