Removing and installing resonance intake manifold - AR09.20-P-1961H

ENGINE 606.912

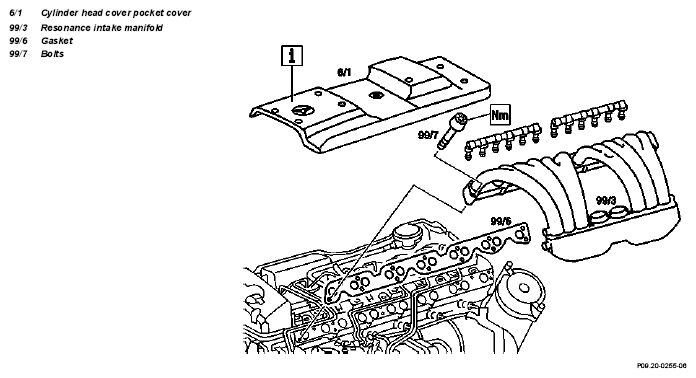

Fig 1: Identifying Resonance Intake Manifold Components

Figure/Item, etc.	Notes on the work
	Remove and install resonance intake pipe		AR09.20-P-1984H
	Connecting diagram for vacuum lines	Refer to Diesel Engine Diagnosis Manual, Volume 1.1, Index 3.1
6/1	Cylinder head cover pocket cover	When assembling, ensure that the leak fuel hose from No. 1 cylinder to the return flow hose is correctly routed
99/3	Resonance intake pipe	Cover the intake ports after detaching
99/6	Gasket	Replace
99/7	Bolts		*BA09.20-P-1001-01A

Intake manifold

Number	Designation			Engine 606
BA09.20-P-1001-01A	Bolt, intake manifold on cylinder head	M5	Nm	10
		M7	Nm	20
