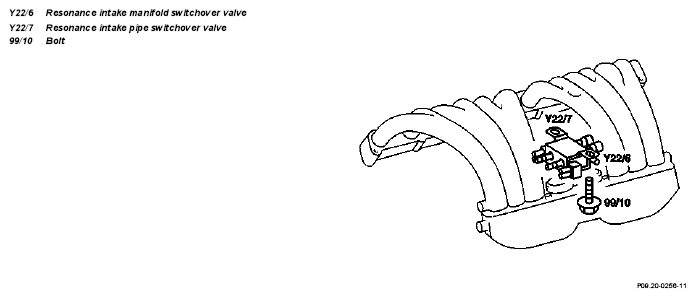

Removing and installing resonance flap switchover valves - AR09.20-P-1991H
ENGINE 606.912
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Remove resonance intake pipe, install. | AR09.20-P-1984H | ||
| Connection diagram of vacuum pipes | See Diagnosis Manual Diesel Engine, Volume 1.1, Index 3.1. | ||
| Connection diagram of wiring | See Wiring Diagrams Model 210, Volume 1. |
