Remove/install charge air distribution pipe - AR09.41-P-1310HA

ENGINE 606.961 in MODEL 140.135

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 606.964 in MODEL 463

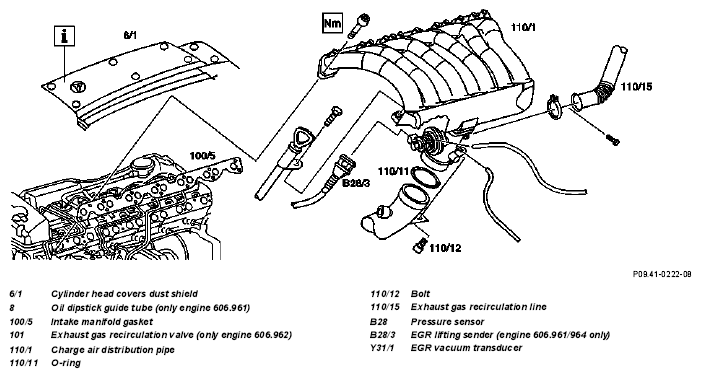

Fig 1: Identifying Charge Air Distribution Pipe Components

Fig. item, etc.	Work instructions
	Charge air distribution pipe	after disassembly, cover over intake ports.
	Coolant expansion reservoir	Unscrew on engine 606.961and put to the side
	Bolts at charge air distribution tube (110/1)		*BA09.41-P-1001-01A
6/1	Cylinder head covers dust shield	When assembling ensure, that the leak fuel hose of cyl. 1 is correctly routed to the return flow hose
8	Oil dipstick guide tube	Unscrew only on engine 606.961
B28/3	EGR [ARF] lifting sender	Unplug plug on engine 606.961/964
101	Exhaust gas recirculation valve	Engine 606.962 only
110/11	O-ring	Check and replace if necessary
110/12	Screw	Unscrew from underneath, to do this, remove engine compartment lining
110/15	Exhaust gas recirculation pipe	remove

Charge air pipe/charge air cooling
