Turbocharger with intercooler function - GF09.40-P-3001C
ENGINE 602.982 in MODEL 210.017 /217 /617
ENGINE 605.960 in MODEL 202.128 /188
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215

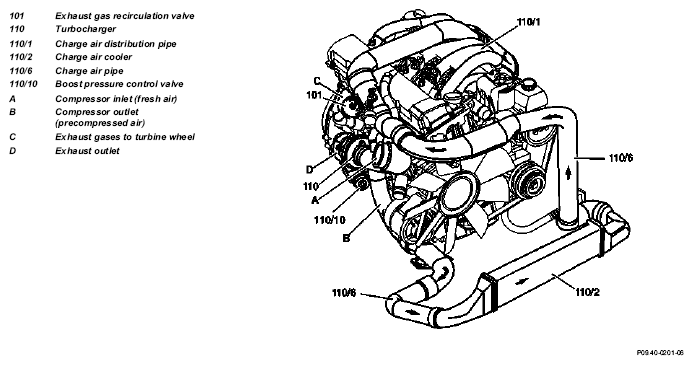

Shown on engine 602.982 to 02/97
| Turbocharger with intercooler task | To increase engine torque and power | ||
| Turbocharger with charge air cooler function | Exhaust-gas turbocharging uses the flow of exhaust gases (C) to drive a turbocharger (110). The turbocharger (110) draws in fresh air at the compressor inlet (A) and delivers precompressed air via the compressor outlet (B), the charge air pipe (110/6), the charge air cooler (110/2) and the charge air distribution pipes (110/1) to each of the engine's cylinders | ||
| Boost pressure control task/design/function | Engine 602.982 | GF09.40-P-3000C | |
| Engine 605.960 to 03/96 | GF09.40-P-3000H | ||
| Engine 605.960 as of 04/96 Engine 605.962 Engine 606.961/962 |
GF09.40-P-3000HA | ||
| Turbocharger task/design/function | GF09.40-P-3100C | ||
| Charge air cooler location/task/design/function | GF09.41-P-3100C |
