Manifold vacuum assist (MVA) arrangement of pneumatic components - GF09.20-P-0001-02E

Vehicles with gasoline engines with air conditioning (Automatic) (Automatic) A/C

Shown on sedan

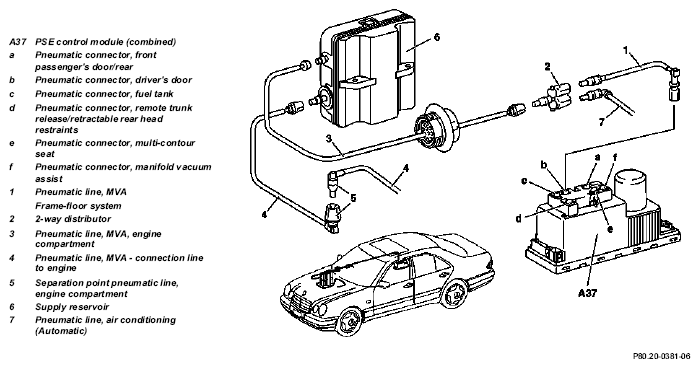

Fig 1: Identifying Supply Reservoir,2-Way Distributor And Pneumatic Line,Air Conditioning

Vehicles with diesel engines with air conditioning (Automatic) (Automatic) A/C

Shown on sedan

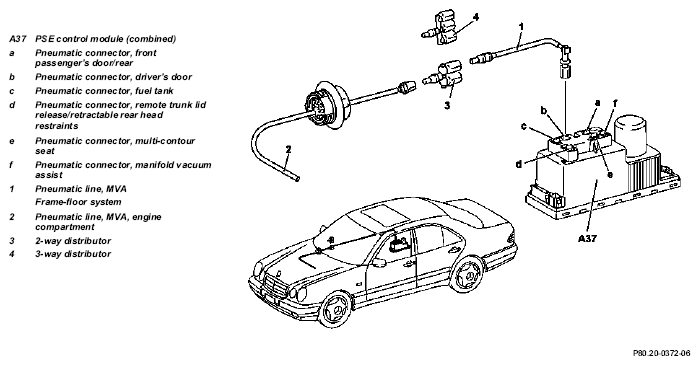

Fig 2: Identifying 2-Way Distributor,3-Way Distributor And Pneumatic Line,MVA Fram-Flor System
