Parktronic system (PTS), location of components - GF54.65-P-0001-02B

Model 210 with code 220a Parktronic system (PTS)

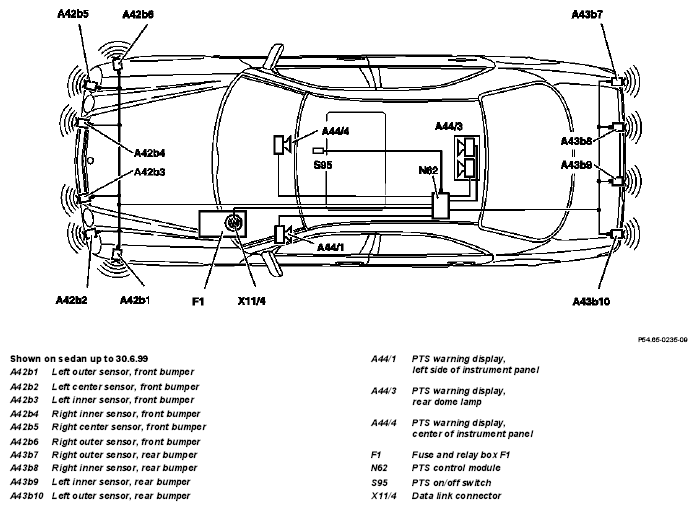

Fig 1: Identifying Parktronic System (PTS) Components Location - Shown On Sedan Up To 30.6.99
G04633311Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

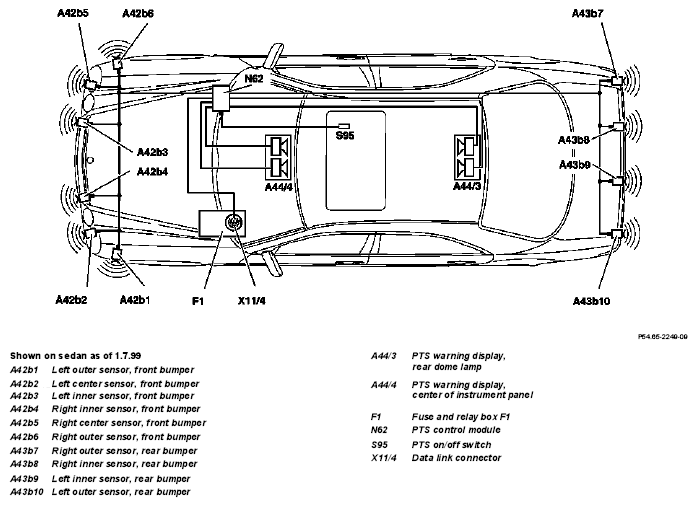

Fig 2: Identifying Parktronic System (PTS) Components Location - Shown On Sedan As Of 1.7.99
G04633312Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
