High-pressure/return pump relay, testing electrical system of traction systems - AD42.00-P-6000-06A

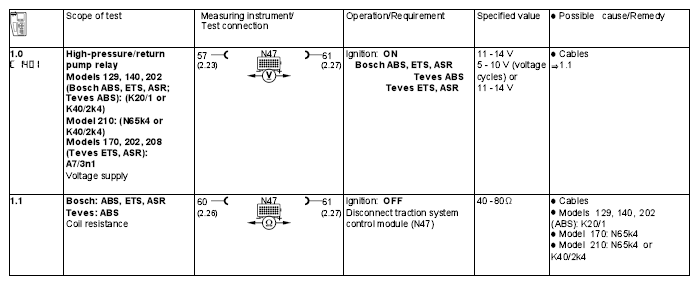

Fig 1: High-Pressure/Return Pump Relay, Testing Electrical System Of Traction Systems
G04635387Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
