ESP and SPS test of electrical system ESP hydraulic unit - AD42.45-P-6001-21C

Precharge and switchover solenoid valves (A7/3y16-y19)

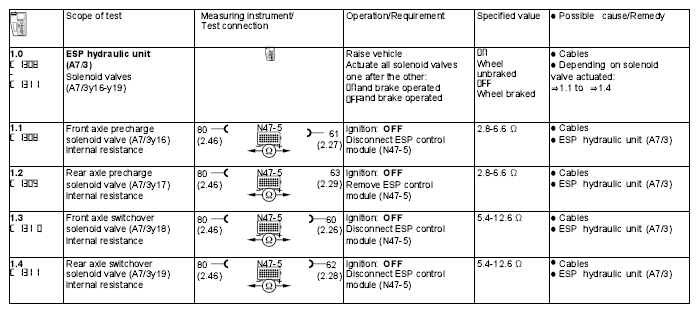

Fig 1: ESP And SPS Test Of Electrical System ESP Hydraulic Unit
G04635456Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
