ESP and SPS test of electrical system ESP control module - AD42.45-P-6001-01A

Voltage supply, terminal 87

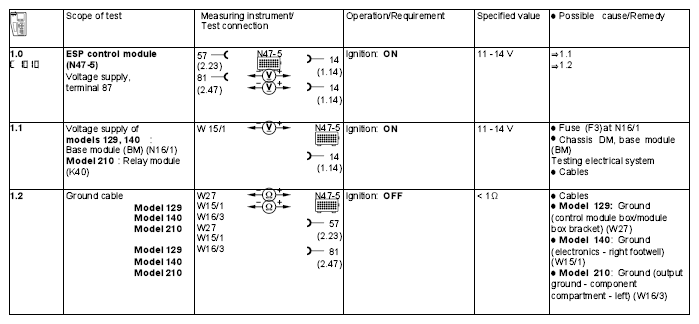

Fig 1: ESP And SPS Test Of Electrical System ESP Control Module
G04635438Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
