ESP and SPS control module contact assignment - AD42.45-P-2001-03B

Assignment to coupling 2

(Engine wiring harness) for ESP control module (N47-5)

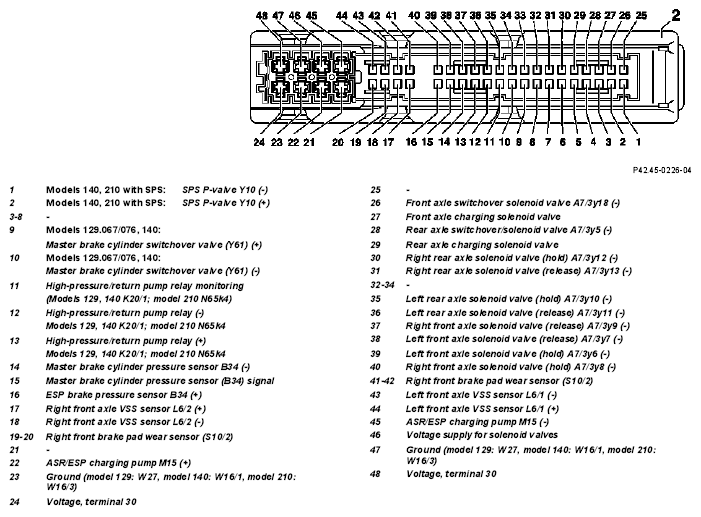

Fig 1: Identifying ESP And SPS Control Module Assignment To Coupling 2
G04635413Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
