ESP and SPS control module contact assignment - AD42.45-P-2001-03A

Assignment to coupling 1

(Interior wiring harness) and coupling 3 (CAN data bus) for ESP control module (N47-5)

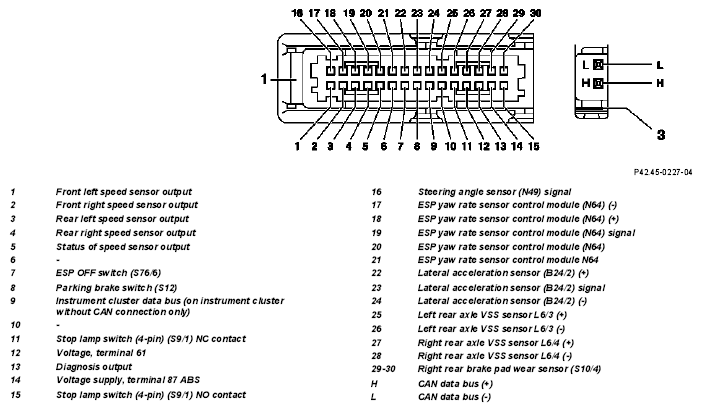

Fig 1: Identifying ESP And SPS Control Module Assignment To Coupling 1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
