Connecting socket box with BAS test harness - AD42.31-P-2000-01A

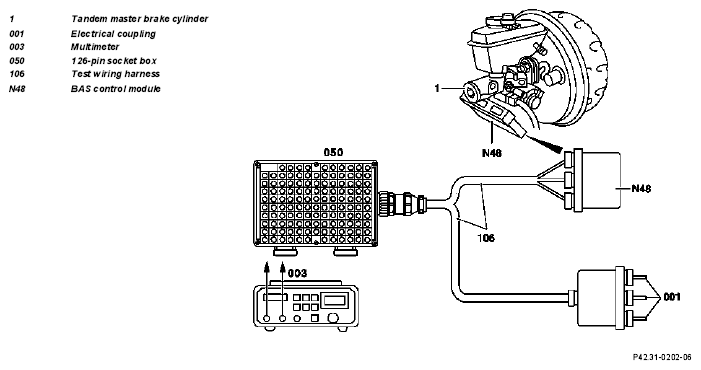

Connecting diagram for socket box

Fig 1: Identifying Connecting Socket Box With BAS Test Harness
G04635395Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
