Connecting diagram for socket box on control module (ABS, ASR, ETS) - AD42.00-P-2000-02C

Connecting diagram for socket box

Models 170, 208, 210

Model 202 with control module box

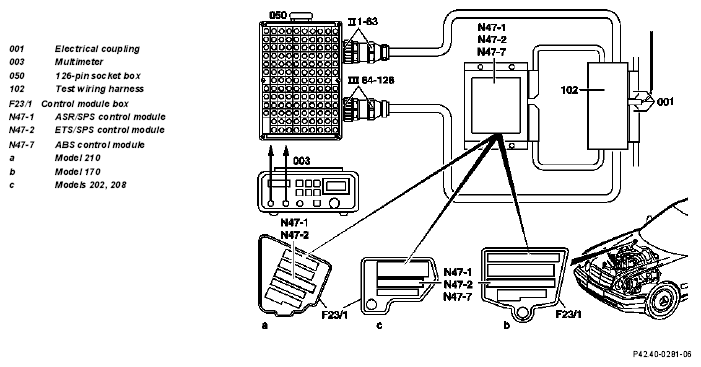

Fig 1: Identifying Connecting Diagram For Socket Box On Control Module
G04635383Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
