Arrangement of ESP brake pressure sensor - GF42.45-P-4900-02B

Model 140

Model 210 with engine 119

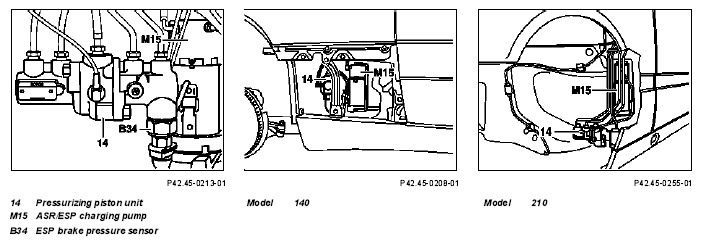

Fig 1: Identifying ESP Brake Pressure Sensor
G04635370Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location: Screwed onto pressurizing piston unit behind lining on left front fender.
