Home >> Mercedes Benz >> 2000 >> E430 Base >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes -- Basic Knowledge -- 210 Chassis >> Basic Knowledge >> Acceleration slip regulation (ASR V/ETS), location of electrical/electronic components - GF42.40-P-0005-03E

Acceleration slip regulation (ASR V/ETS), location of electrical/electronic components - GF42.40-P-0005-03E

Model 210 (except 210.08/28)

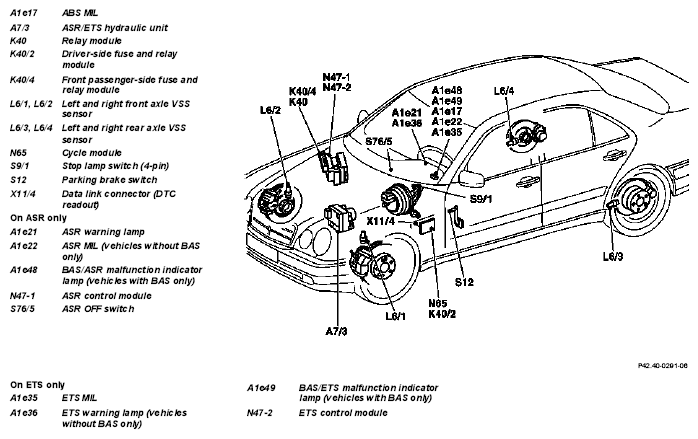

Fig 1: Identifying Acceleration Slip Regulation (ASR V/ETS), Location Of Electrical/Electronic Components
G04635300Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
