Voice control system (VCS), arrangement of components - GF82.70-P-0002-01EB

Shown on model 210. 0

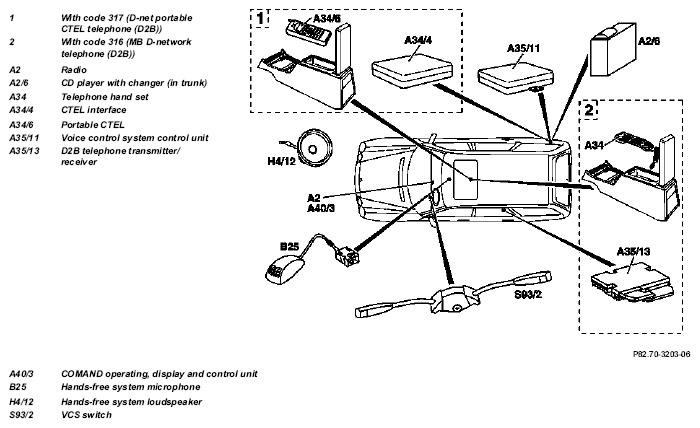

Fig 1: Identifying Voice Control System (VCS), Arrangement Of Components (Model 210.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 210.2

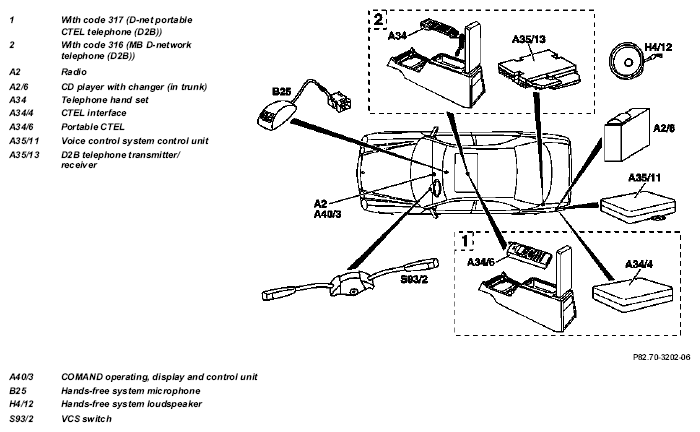

Fig 2: Identifying Voice Control System (VCS), Arrangement Of Components (Model 210.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
