Telephone (D-network), location of components - GF82.70-P-0003-01F

Model 210 as of 1.6.98 up to 31.5.00 with code 316/317

Sedan

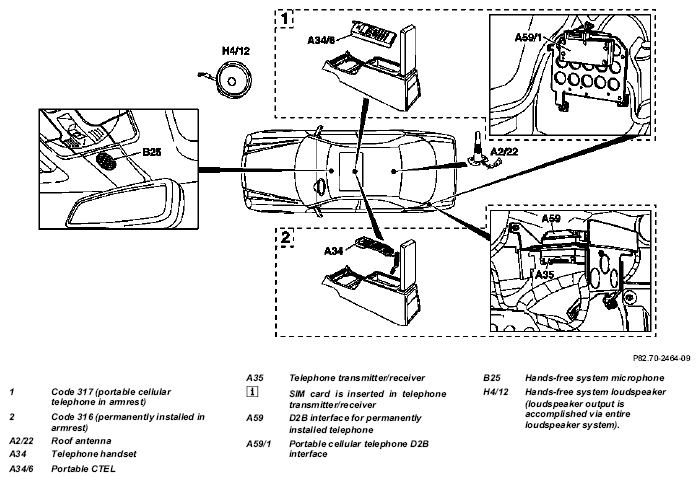

Fig 1: Identifying Car Telephone (D-network), Location Of Components (7 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

T-model

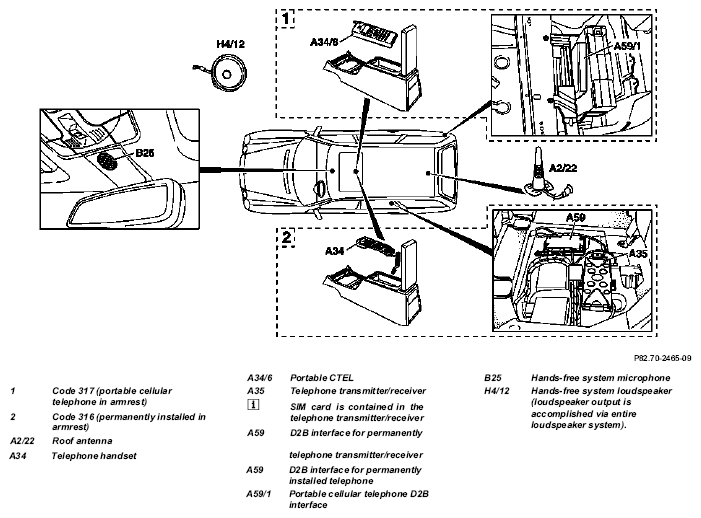

Fig 2: Identifying Car Telephone (D-network), Location Of Components (8 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
