Operating and display unit with control module arrangement - GF82.85-P-3114-05E

Models 208, 210 with code 352a

Shown on model 208

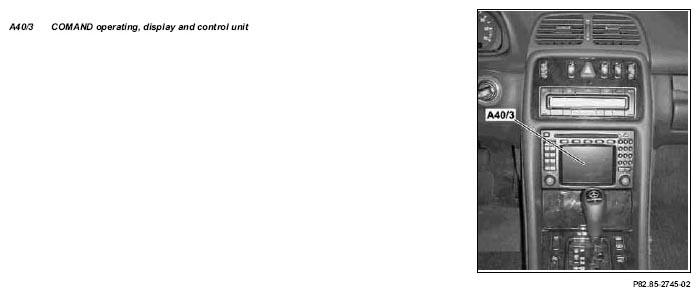

Fig 1: Identifying Operating, Display Control Unit
G04633685Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
