Electrical System - Basic Knowledge - 210 Chassis - 2 Of 2
>>
Basic Knowledge
>>
FM/AM antenna amplifier, location - GF82.62-P-4101-01E
FM/AM antenna amplifier, location - GF82.62-P-4101-01E
Model 210.0/6 (except CODE 352)

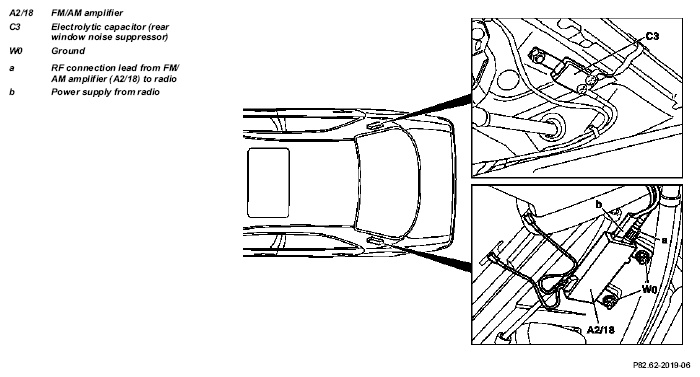

Fig 1: Identifying FM/AM Antenna Amplifier Location
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
