FM/AM antenna amplifier, location - GF82.62-P-4101-01C

Models 202.078/080/083/182/188, 210.2

Illustrated on model 202

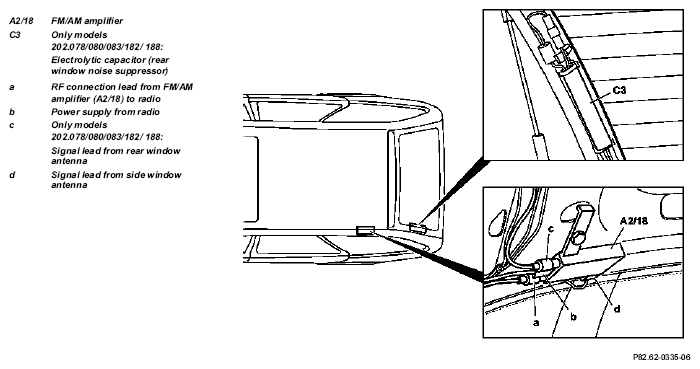

Fig 1: Identifying FM/AM Antenna Amplifier Location
G04633572Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
