Car telephone (D-network), location of components - GF82.70-P-0003-01C

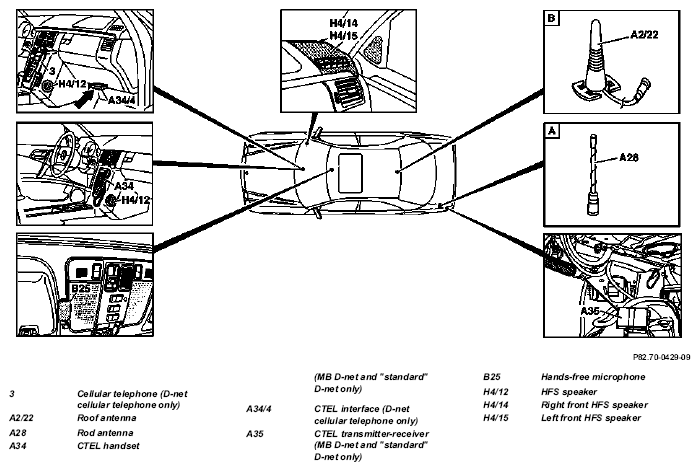

Model 129

Fig 1: Identifying Car Telephone (D-network), Location Of Components (1 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

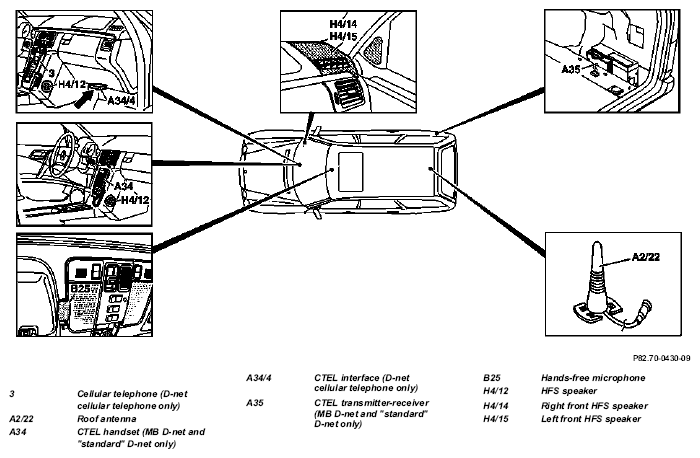

Model 140

Fig 2: Identifying Car Telephone (D-network), Location Of Components (2 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

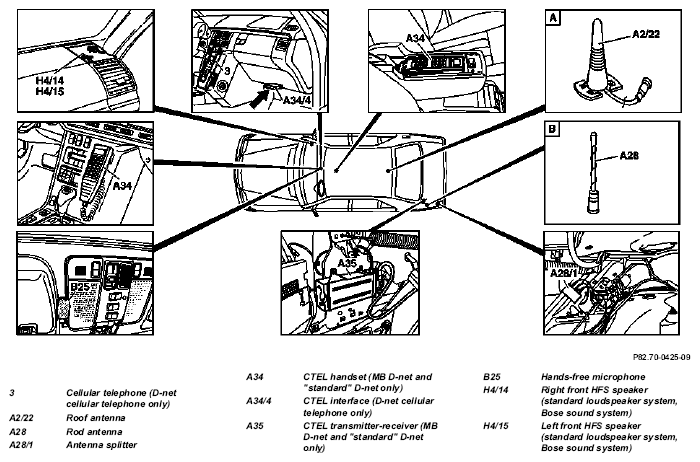

Model 202 sedan

Fig 3: Identifying Car Telephone (D-network), Location Of Components (3 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

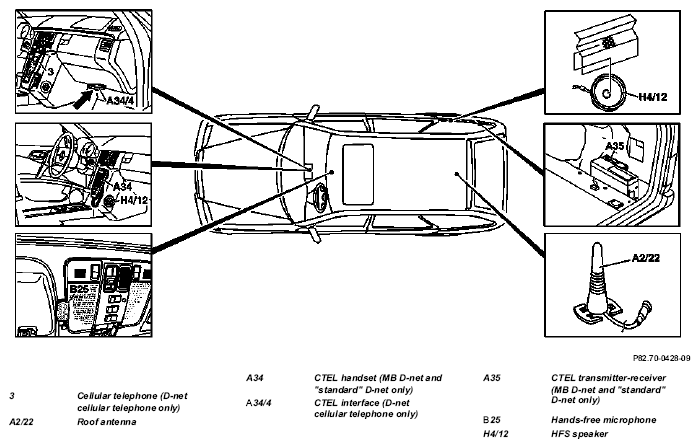

Model 202 T-model

Fig 4: Identifying Car Telephone (D-network), Location Of Components (4 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210 sedan

Fig 5: Identifying Car Telephone (D-network), Location Of Components (5 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

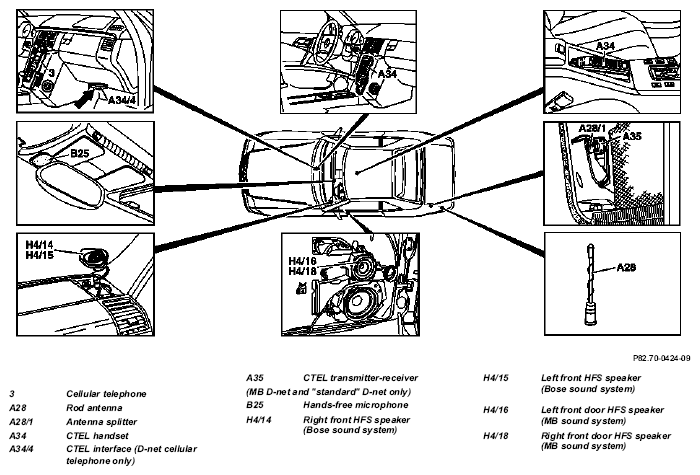

Model 210 T-model

Fig 6: Identifying Car Telephone (D-network), Location Of Components (6 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
