Audio/TV antenna amplifier, location/purpose/design/function - GF82.62-P-3104E

MODEL 208, 210 (except 208.4, 210.2) with CODE (352a) COMAND operating and display system

Valid for top right rear window antenna amplifier (A2/9)

Illustrated on model 208

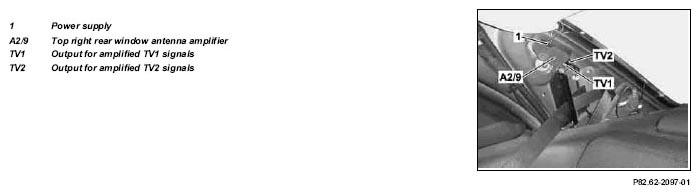

Fig 1: Identifying Top Right Rear Window Antenna Amplifier And Output For Amplified TV1 Signals

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Audio/TV antenna amplifier, location	Under panelling on right C-pillar.
Audio/TV antenna amplifier, purpose	Amplifying and filtering signals of the following antennas: TV1, TV2.
Audio/TV antenna amplifier, design	Inputs: TV1 and TV2 antenna signals and power supply Outputs: Amplified TV1 and TV2 signals.
Audio/TV antenna amplifier, function	GF82.62-P-3104-02E
