Audio/TV antenna amplifier, location/purpose/design/function - GF82.62-P-3104D

MODEL 208, 210 (except 208.4, 210.2) with CODE (352a) COMAND operating and display system

Valid for bottom left rear window antenna amplifier (A2/24)

Illustrated on model 208

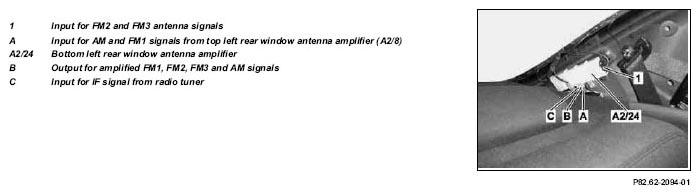

Fig 1: Identifying Output For Amplified FM1,FM2 And AM Signals And Input For IF Signal From Radio Turner

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Audio/TV antenna amplifier, location	Under panelling on left C-pillar
Audio/TV antenna amplifier, purpose	Amplifying and filtering signals of the following antennas: AM, FM1, FM2, FM3. Power supply of further antenna amplifiers: A2/8, A2/9 (optional) and A2/25 (optional)
Audio/TV antenna amplifier, design	Inputs: AM, FM1, FM2, FM3, IF signals, power supply and switching signal for activation of A2/24 amplifier. Outputs: AM/FM signals, power supply Integrated processor for FM diversity feature.
Audio/TV antenna amplifier, function	GF82.62-P-3104-02D
