Audio/TV antenna amplifier, location/purpose/design/function - GF82.62-P-3104B

MODEL 208, 210 (except 208.4, 210.2) with CODE (352a) COMAND operating and display system

Valid for top left rear window antenna amplifier (A2/8)

Illustrated on model 208

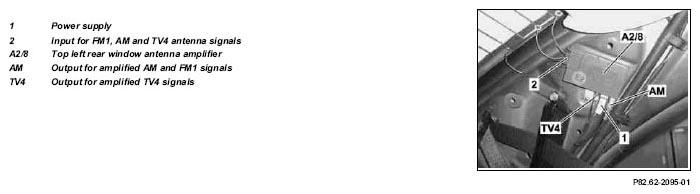

Fig 1: Identifying Top Left Rear Window Antenna Amplifier AND Output For Amplified AM And FM1 Signals

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Audio/TV antenna amplifier, location	Under panelling on left C-pillar.
Audio/TV antenna amplifier, purpose	Amplifying and filtering signals from the following antennas: AM, FM1, TV4.
Audio/TV antenna amplifier, design	Inputs: AM, FM1 and TV4 antenna signals and power supply Outputs: Amplified AM, FM1 and TV4 antenna signals.
Audio/TV antenna amplifier, function	GF82.62-P-3104-02B
