Warning indicator, location - GF54.65-P-4104-02AD

MODEL 210 as of 01.07.99 with CODE (220a) Parktronic system (PTS)

Model 210 as of 1.7.99

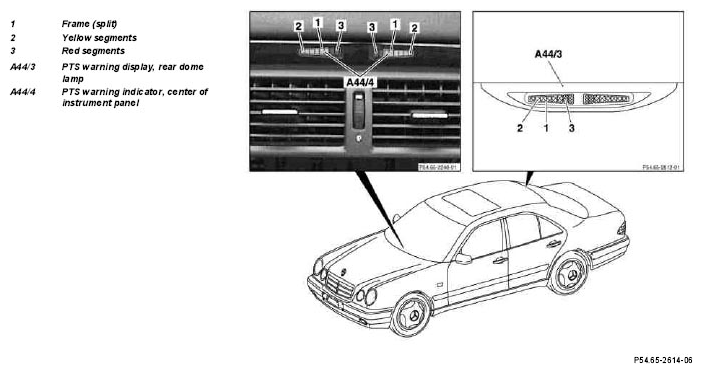

Fig 1: Identifying Warning Indicator Location - Model 210 As Of 1.7.99
G04633316Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
