Engine hard to start - AF54.18-P-6401A

ENGINE 604.912 in MODEL 210.004 ## up to 002261

ENGINE 605.912 in MODEL 210.010 ## up to 002261

ENGINE 606.912 in MODEL 210.020 ## up to 002261

Damage code	Cause	Remedy:
54 151 74	Cable connector missing	1 Unclip upper section of plastic housing on terminal point X12/3.
		2 Check whether the jumper is present in form of cable connector.
		3 Install missing tie strap.
		4 Clip in upper section.

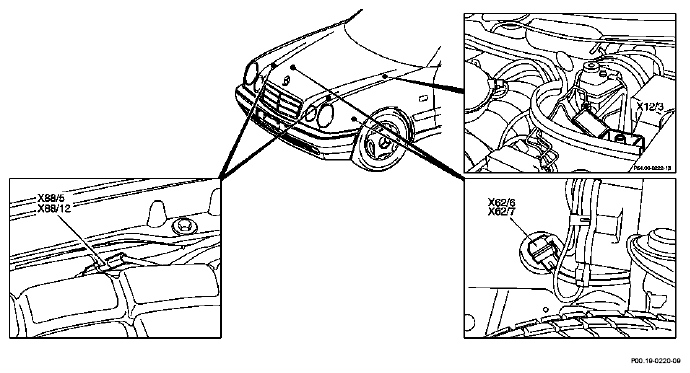

Fig 1: Identifying Upper Section Of Plastic Housing On Terminal Point X 12/3

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Parts ordering notes

Part no.	Designation	Quantity
210 546 00 41	Cable connector	1
