Component Locations (202 Chassis As Of 8/1/96 & 208 Chassis)
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2002 Mercedes-Benz E430, 2002 Mercedes-Benz E320, 2001 Mercedes-Benz E430, 2001 Mercedes-Benz E320, and 2000 Mercedes-Benz E430. However, it is still accessible from the selected car via links, so may be relevant.

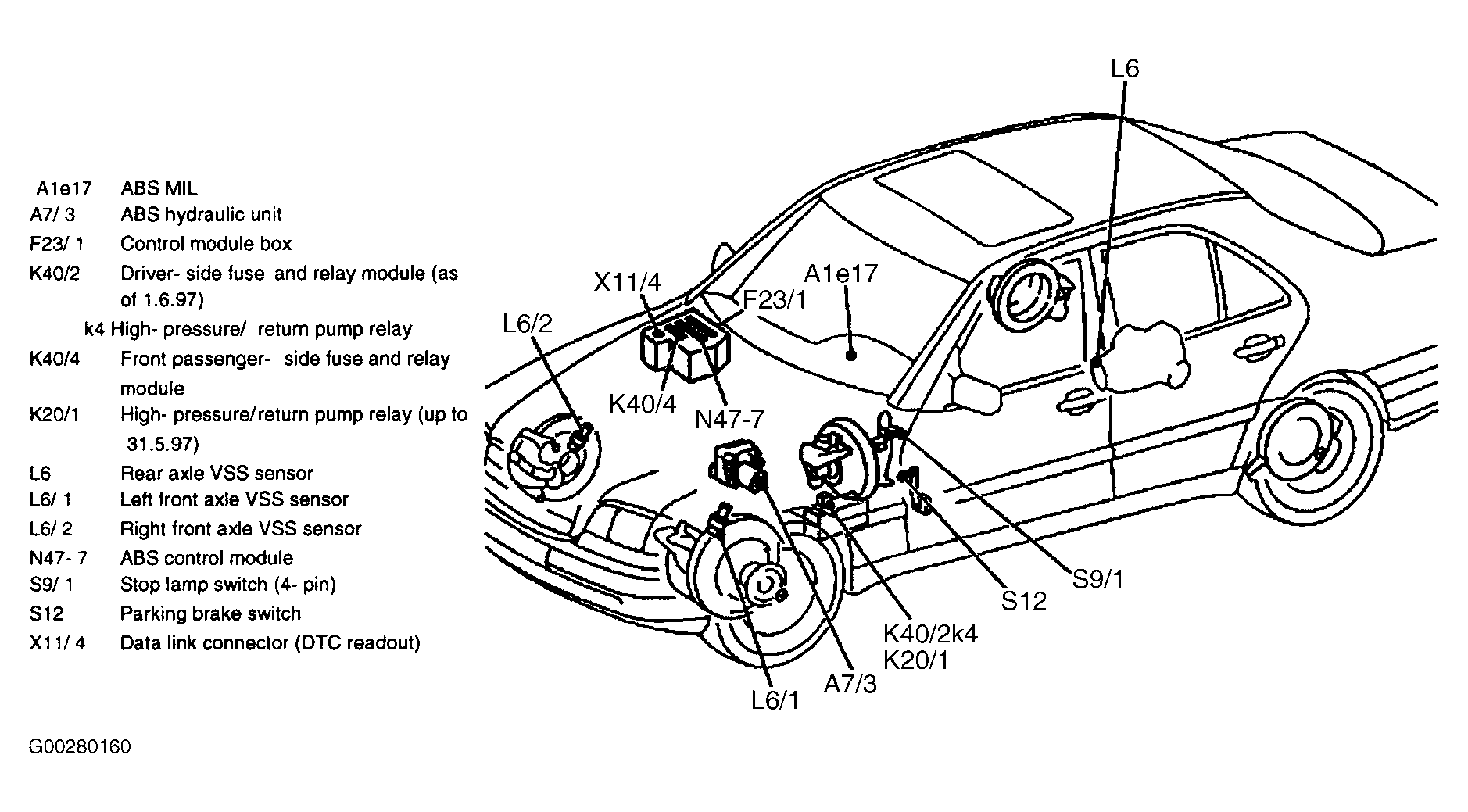

COMPONENT LOCATIONS (202 CHASSIS AS OF 8/1/96 & 208 CHASSIS)
| Component | See |
|---|---|
| ABS Control Module (N47-7) | Fig 1 |
| ABS Hydraulic Unit (A7/3) | Fig 1 |
| ABS MIL (A1e17) | Fig 1 |
| Control Module Box (F23/1) | Fig 1 |
| Data Link Connector (DTC Readout) (X11/4) | Fig 1 |
| Driver Side Fuse & Relay Module, High Pressure/Return Pump Relay (As Of 6/1/97) (K40/2k4) | Fig 1 |
| Front Passenger Side Fuse & Relay Module (K40/4) | Fig 1 |
| High Pressure/Return Pump Relay (Up To 5/31/97) (K20/1) | Fig 1 |
| Left Front Axle VSS Sensor (L6/1) | Fig 1 |
| Parking Brake Switch (S12) | Fig 1 |
| Rear Axle VSS Sensor (L6) | Fig 1 |
| Right Front Axle VSS Sensor (L6/2) | Fig 1 |
| Stop Lamp Switch (4 Pin) (S9/1) | Fig 1 |
