Removing and installing loudspeakers in instrument panel - AR82.62-P-7833N

MODEL 215

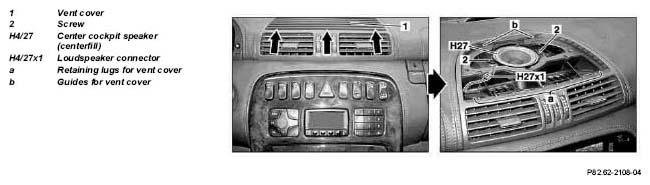

Fig 1: Identifying Loudspeakers In Instrument Panel Remove/Install Components

	Removal, installation
1	Unclip vent cover (1) from instrument panel with suitable tool and remove	Installation:  Ensure that vent cover first moves into guides (b) and catches in the retaining lugs (a)
2	Unscrew screws (2) and remove center cockpit speaker (centerfill) (H4/27)
3	Disconnect loudspeaker connector (H4/27x1)
4	Install in opposite order
