Removing and installing loudspeakers in instrument panel - AR82.62-P-7833I

MODEL 220

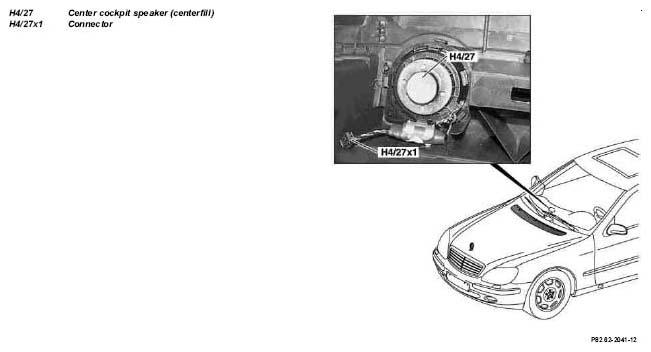

Fig 1: Identifying Center Cockpit Speaker And Connector

	Removal, installation
1	Remove instrument panel		AR68.10-P-1000M
2	Remove center cockpit speaker (centerfill) (H2/27)
3	Disconnect connector (H4/27x1)
4	Install in opposite order
