Remove and install tensioning rail and slide rail in timing case cover - AR05.10-P-8500L

ENGINE 137.970

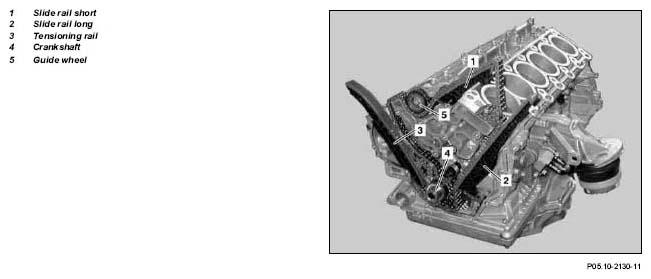

Fig 1: Identifying Slide Rail Short, Slide Rail Long, Tensioning Rail And Guide Wheel Components
G04839514
REMOVINGINSTALLING Remove/install
1 Remove timing case cover   AR01.40-P-8000L
2 Detach slide rails (1, 2) at front from retaining bolts.
3 Detach tensioning rail (3) at front from retaining bolt.
4 Install in the reverse order
